    SCOUT SYSTEMS

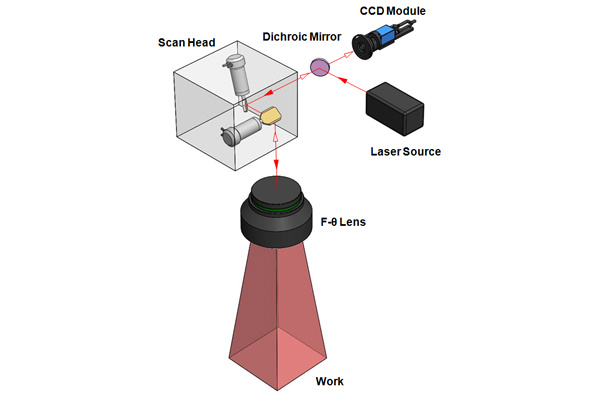

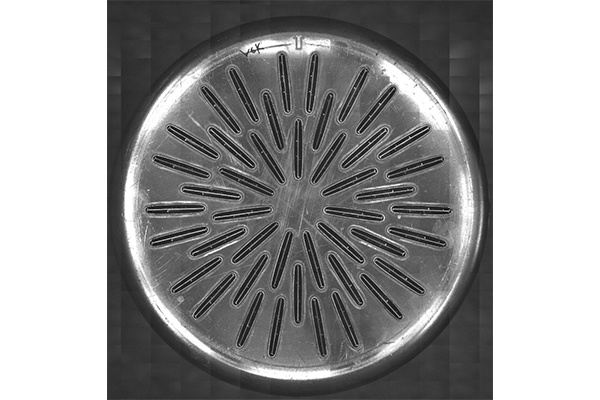

    Full-field high-precision coaxial vision



                          Coaxial camera                                         Scout



    FOCUS & TILT GUIDE MODULE



    FOCUS & TILT GUIDE MODULE



    MULTI WAY BEAM SWITCH-Using the 1 Laser Multi SCOUT (Max 4 Chanel)



    Model Scout-100 Scout-200 Scout-300
    Wavelength 1070nm
    Laser Connection QBH
    Max. Laser Power(W) 150w(@1070nm) 2.0kw(@1070nm) 5kw(@1070nm)
    Aperture Size 10mm 20mm 30mm
    Welding Speed 2.5m/s 1.0m/s 0.7m/s
    F-Theta Lens F-100/F-160mm F-160/F-254mm(Fused Silica) F-254/F-420mm(Fused Silica)
    Collimation Length 30mm/60mm 120mm 140mm

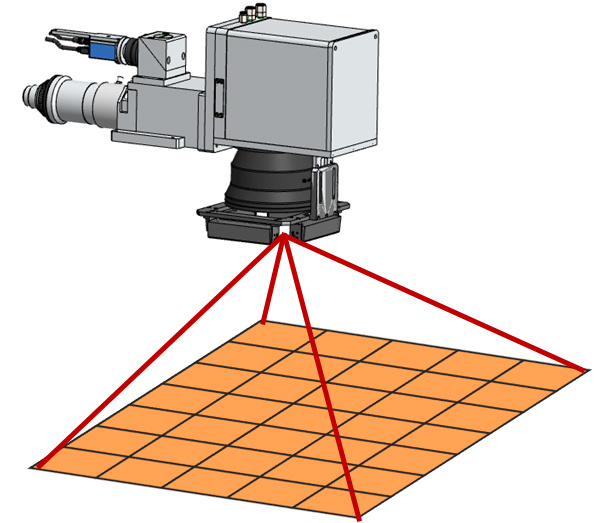

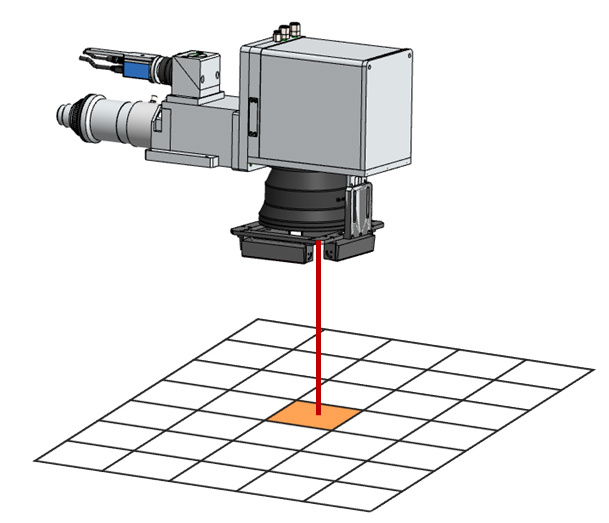

    Working Field Up to 70 x 70mm Up to 110 x 110mm Up to 200 x 200mm
    Scan Resolution 0.45um(@F-100) 1.83um(@F-254) 3.05um(@F-420)
    Repeatability 1.8um(@F-100) 7.3um(@F-254) 12.2um(@F-420)
    Input Power 100~230VAC, 50/60Hz
    Cooling Air Cooling Water/Air Cooling Water/Air Cooling
    Cooling Spec

    Water:6L/Min

    Air:25L/Min

    Water:6L/Min

    Air:25L/Min
    Head Weight 8kg 20kg 25kg
    Interface XY2-100 XY2-100 XY2-100





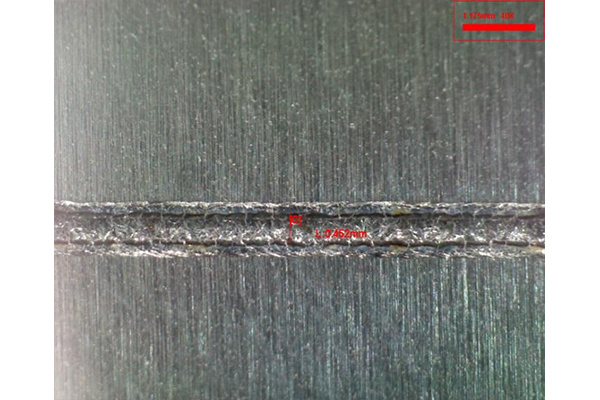

    Battery Lead Welding



    Remote Welding



    Heat Exchanger



    Automobile parts



    Electric Double Layer Capacitor
